RAPID BELLHOUSE REPAIR

RAPID BELLHOUSE REPAIR

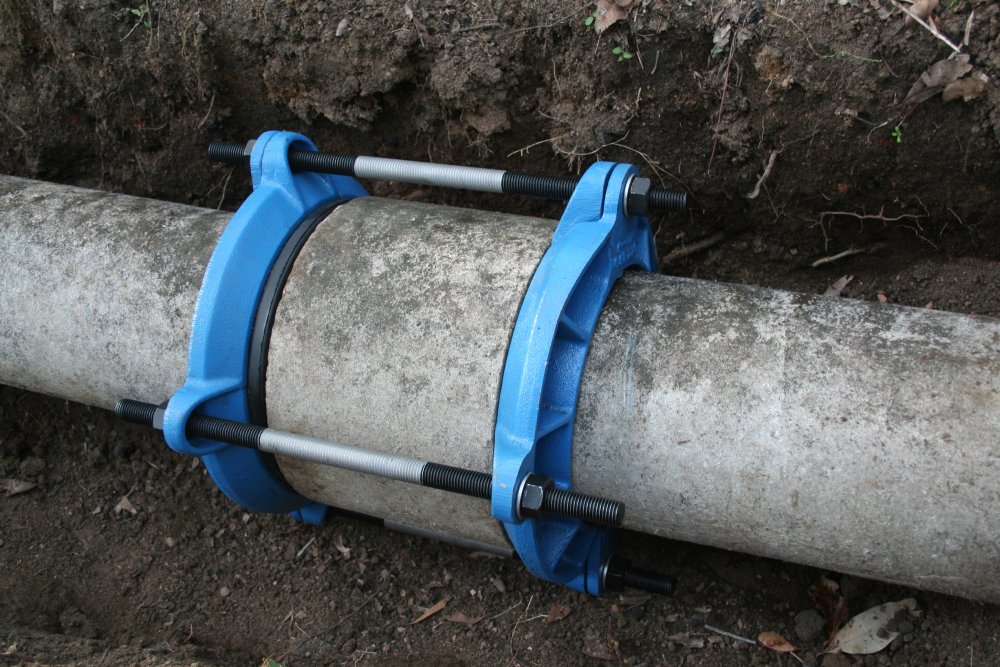

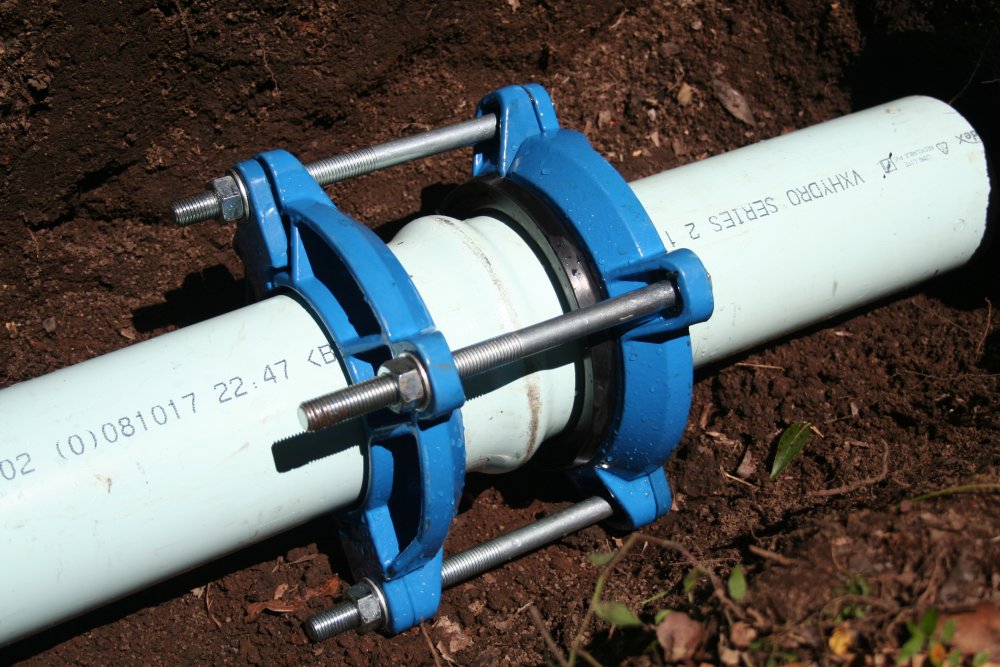

Our bell house or socket repair couplings are a quick and easy way to repair leaking pipe sockets and double collar joins. Fit for use with ductile iron, cast iron, asbestos cement, uPVC, and other types of pipes.
They eliminate the need to “cut out” a leaking socket join, or double socket join. The coupling bodies and rubber seal/s are interlocking and fit around the pipe, so they can be installed without disrupting the internal flow.

Click button for further information:

Brochure

Flange Rings Ductile iron 420/12 to BS 2789.
Bolts, Nuts and Washers Galvanised. 4.6MPa. Or SS316 8.8MPa
Gasket Nitrile to AS1646 & 4020 specially formulated for water service, gas and oil.
Coating Epoxy Powder Coated, BS6920
Working Pressure 1.6MPa. Working Temperature: 0 to 80 Degrees C
