RAPID FLANGE TAPPED CLAMPS (CF)

RAPID FLANGE TAPPED CLAMPS (CF)

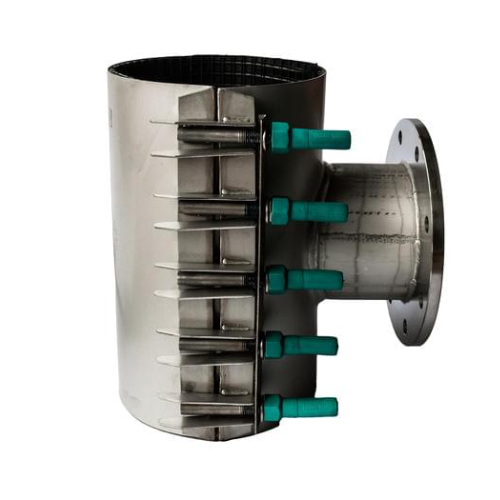

Our CF clamps provide a secure full circumference clamp solution for branch connections requiring a Flange offtake on an existing pipe. CF clamps share their design with our CR repair clamps with the addition of a Flange socket.

Click button for further information:

 Brochure Sizing Table

Pipe Chart Product Range

LOCKING WASHER PLATE
Stainless steel Type 316. Locks into position for easy tightening of nuts.

LUGS
Stainless steel Type 316. MIG-welded to receiver bar and fully passivized after welding. Leading edge is rounded to prevent them from catching bolt bars during installation.

SHELL
Stainless steel Type 316. 2B finish. Fully passivized after welding

BOLTS
Stainless steel Type 316. Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivized after welding.

NUTS/WASHERS
Stainless steel Type 316.

RECEIVER BARS
Stainless steel Type 316. TIG-welded to shell to form a strong fusion, and fully passivized after welding.

GASKET

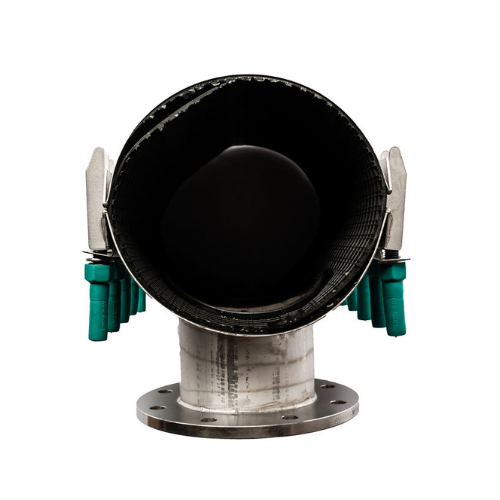

Nitrile rubber is specially formulated for water service, gas and oil. Incorporating antioxidant agents to increase shelf life. All gaskets have a gridded design, tapered ends and vulcanized armor plates for easy installation and optimum sealing efficiency. Natural rubber is available on request.

ARMOUR
Stainless steel Type 316. Vulcanized into the gasket at the time of moulding.

TAPPINGS

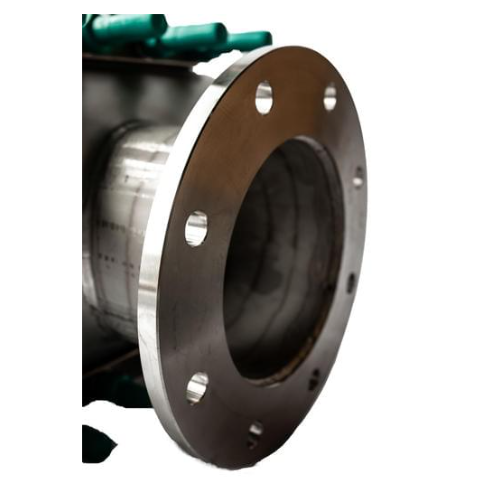

Stainless steel Type 316. AS/NZS 4087, drilled to table ‘D’. (Other flange types are available on request)
