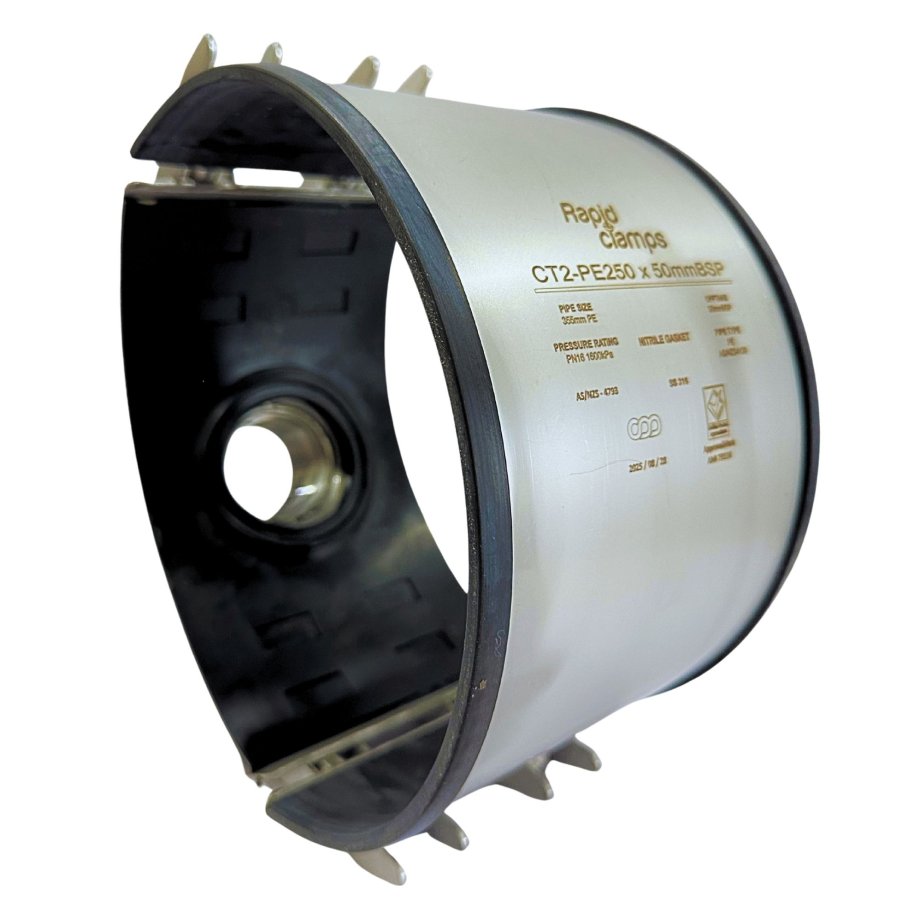

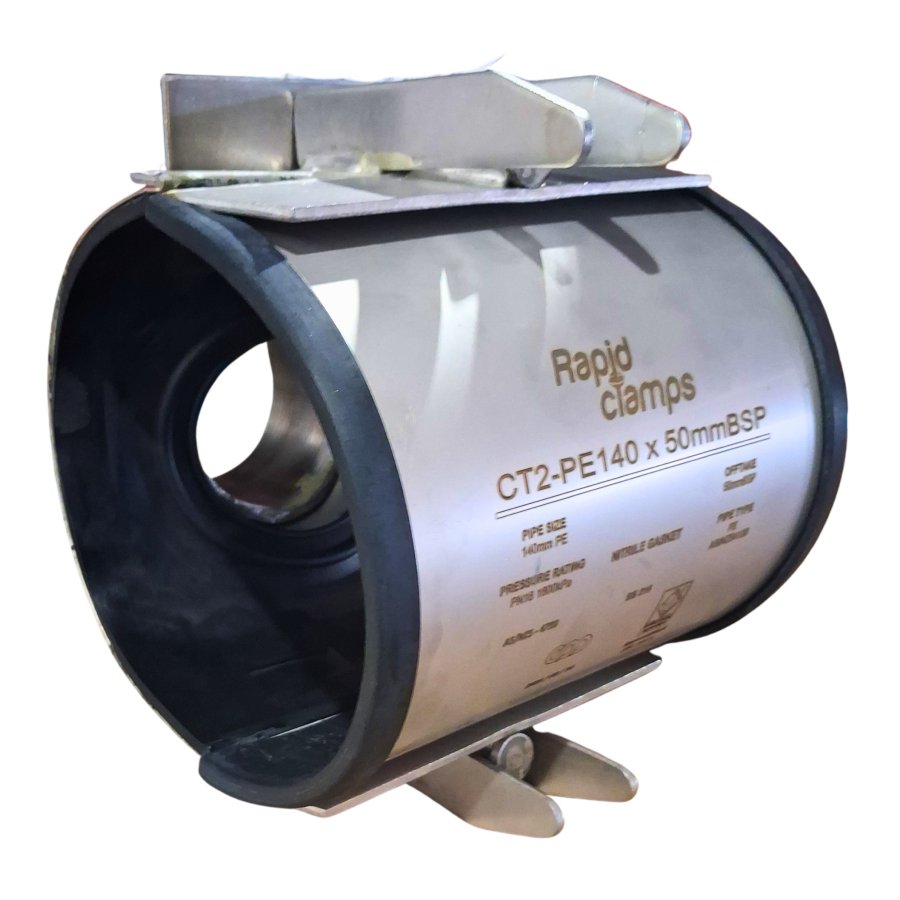

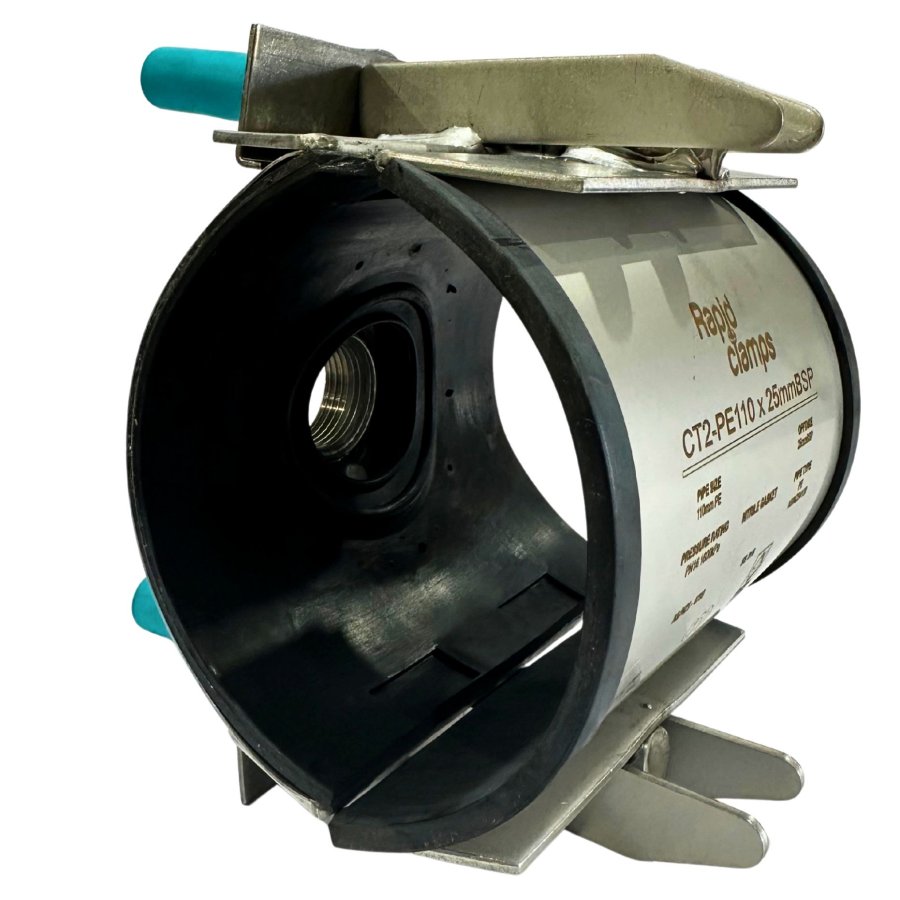

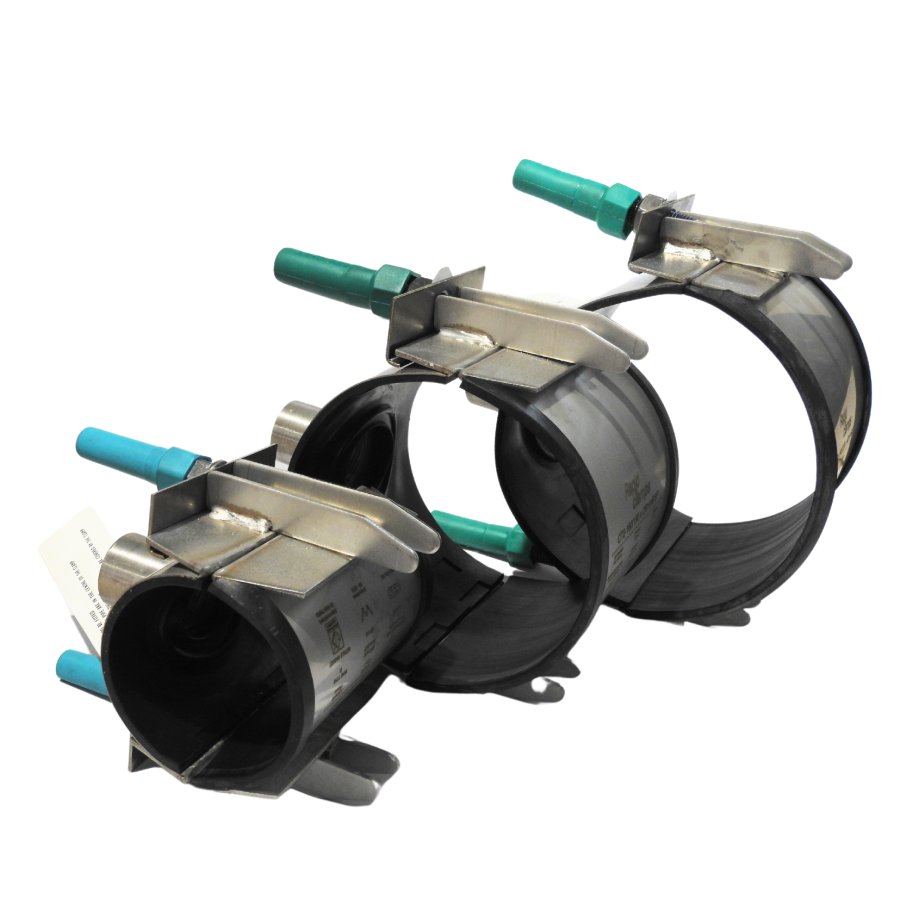

RAPID TAPPING SADDLE FOR POLYETHYLENE (PE)
RAPID TAPPING SADDLE FOR POLYETHYLENE (PE)
Our CT tapping saddles for PE pipe have been manufactured to conform to AS- 4973 for Type F pipe. These tapping saddles incorporate a positive stop to prevent diametral deflection or crushing of the pipe and are specifically designed to suit PE pipe.
They are the ideal solution for a branch connection from existing pipes, installed without having to shut off supply. Our patented Nitrile rubber gaskets are embedded with a stainless-steel disc, they include an O-ring and lip seal ensuring a superior seal.
Click button for further information:
LOCKING WASHER PLATE
Stainless steel Type 316. Locks into position for easy tightening of nuts.
LUGS
Stainless steel Type 316. MIG-welded to receiver bar and fully passivized after welding. Leading edge is rounded to prevent them from catching bolt bars during installation.
SHELL
Stainless steel Type 316. 2B finish. Fully passivized after welding
BOLTS
Stainless steel Type 316. Thread-rolled for strength and coated to prevent galling. Bolts are MIG-welded to the receiver bar and fully passivized after welding.
NUTS/WASHERS
Stainless steel Type 316.
RECEIVER BARS
Stainless steel Type 316. TIG-welded to shell to form a strong fusion, and fully passivized after welding.
GASKET
Nitrile, to AS1646 and AS4020 standards specially formulated for water service, gas and oil. The gasket is specially designed with a static seal and a dynamic lip seal. Also incorporated into the seal is an internal stainless steel retaining disc, which prevents the seal and mat from extruding out, under extreme internal pressure. The specially designed seal allows for pipe outside diameter changes, caused by pressurizing and depressurizing of the pipe.
TAPPINGS
Stainless steel Type 316. Available with Flange or BSP tapping configurations. BSP: DN 15mm to DN100mm BSP Rp parallel threaded socket. (Appraised 15mm to 50mm) Flanges: AS4087 PN16, drilled to Table D (DN80 to DN150). (Flanges available, but not part of appraisals)
